MEZZANINE FLOORS

Engineered mezzanine floor systems designed to increase usable space without expanding your building.

We design, supply and install steel mezzanine floors for warehouses, retail environments, workshops, offices, homes and garages. Each system is planned around the available space, required load capacity, access points and long-term use of the area.

  • STRUCTURAL MEZZANINE FLOORS

    Independent steel structures supported by columns.

    Structural mezzanine floors are designed as free-standing systems where the floor structure is supported by its own steel columns. This allows the space below and above the platform to be planned around the specific operational requirement.

    Used when:

    • larger spans are required
    • heavier loads need to be supported
    • flexible layouts are needed
    • the floor system must operate independently from racking or shelving

    View Structural Mezzanine Floors

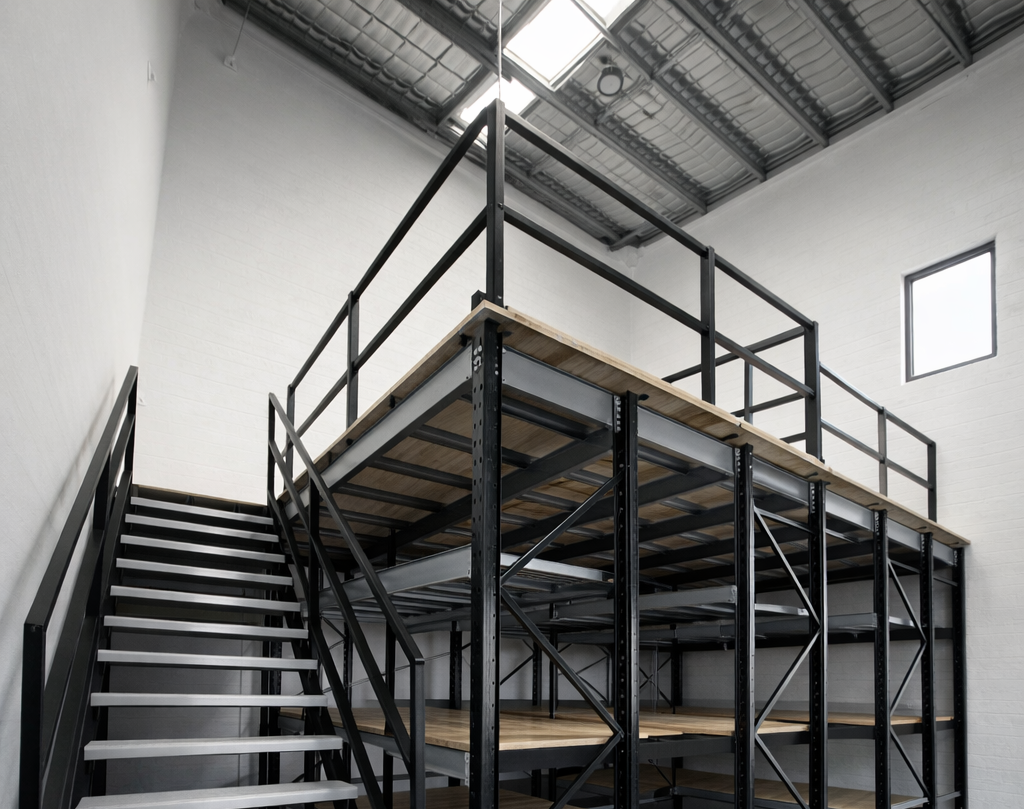

  • RACK-SUPPORTED MEZZANINE FLOORS

    Mezzanine decks supported directly by racking or shelving systems.

    Rack-supported mezzanine floors combine storage and elevated floor space in one integrated system. The structure below supports the mezzanine deck while also providing accessible storage capacity at ground level.

    Ideal when:
    • storage and floor expansion must work together
    • warehouse density needs to increase
    • available floor space is limited
    • racking or shelving forms part of the overall system

    View Rack-Supported Mezzanine Floors

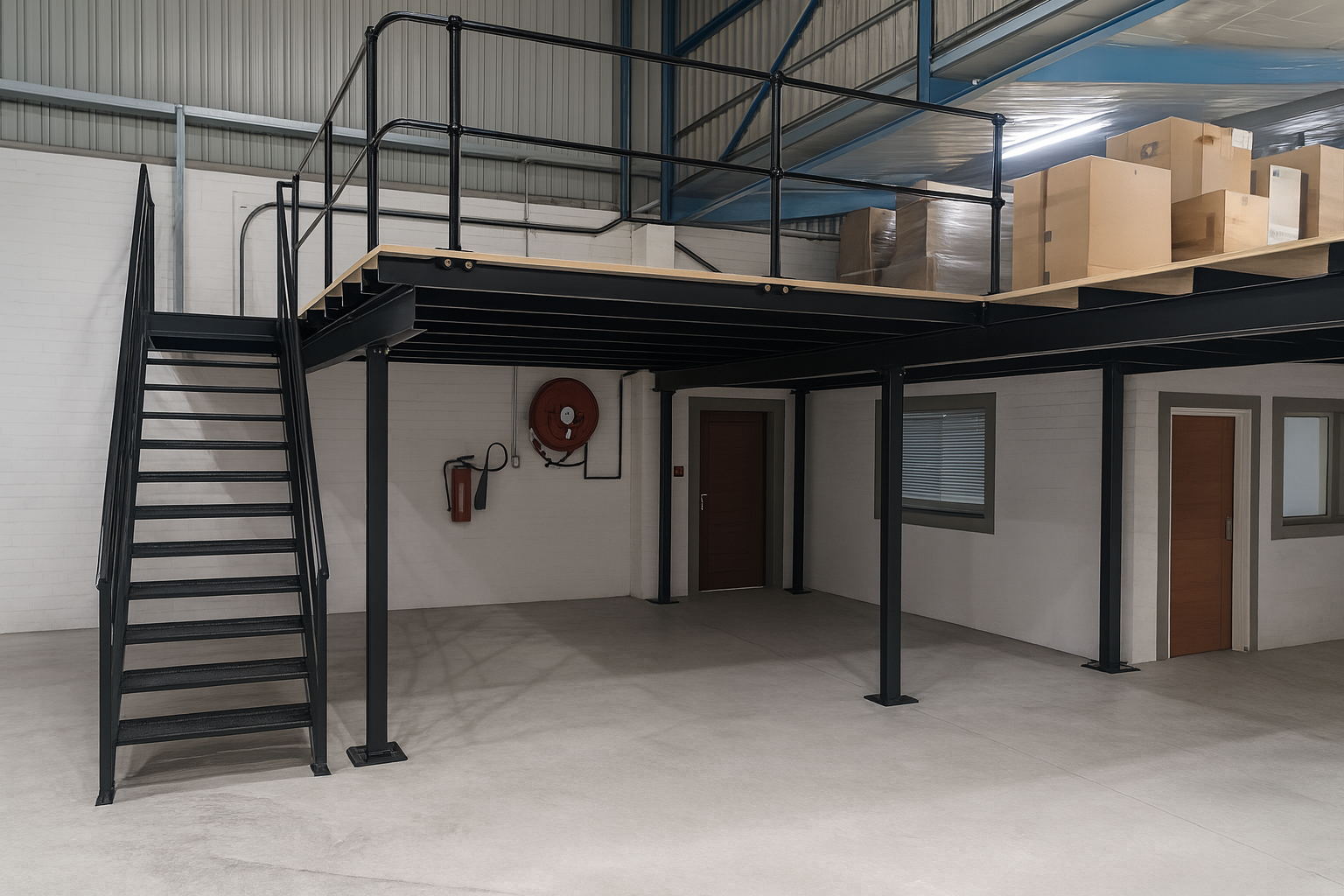

Steel mezzanine floor system installed inside a warehouse
Steel mezzanine floor system installed inside a warehouse
1/3

WHY BUSINESSES INSTALL MEZZANINE FLOORS...

• Increase usable floor area

A mezzanine floor allows a facility to use the height already available inside the building, creating additional space without increasing the building footprint.


• Avoid relocation or building expansion

For many businesses, a properly designed mezzanine system is a practical alternative to moving premises, leasing additional space or undertaking major construction work.


• Improve operational workflow

Mezzanine floors can separate storage, packing, dispatch, office or production areas, helping teams move through the space more efficiently.


• Support future growth

Modular steel mezzanine systems can be planned around current requirements while allowing for future changes in layout, storage needs or operational use.

• Improve long-term value

By increasing usable space inside the existing facility, a mezzanine floor can improve storage capacity, operational efficiency and return on the available floor area.

LET'S GET TECHNICAL

HOW MEZZANINE FLOORS WORK

At the core of every mezzanine is a precision-engineered steel structure designed to safely carry load and maximise space.

The Structure:

  • Steel Uprights (Columns)
    Vertical supports that transfer weight directly to your concrete floor.
  • Load-Bearing Beams
    Horizontal steel beams that distribute weight across the structure.
  • Decking System
    The surface you walk or store on — selected based on your application.
  • Anchoring System
    Secures the structure to the slab for stability and safety.

Two Core System Types:

Freestanding Mezzanine
A fully independent structure — flexible, strong, and ideal for most applications.

Rack-Supported Mezzanine
Built directly onto racking — combining storage and flooring into one system.

TYPES OF MEZZANINE FLOORS

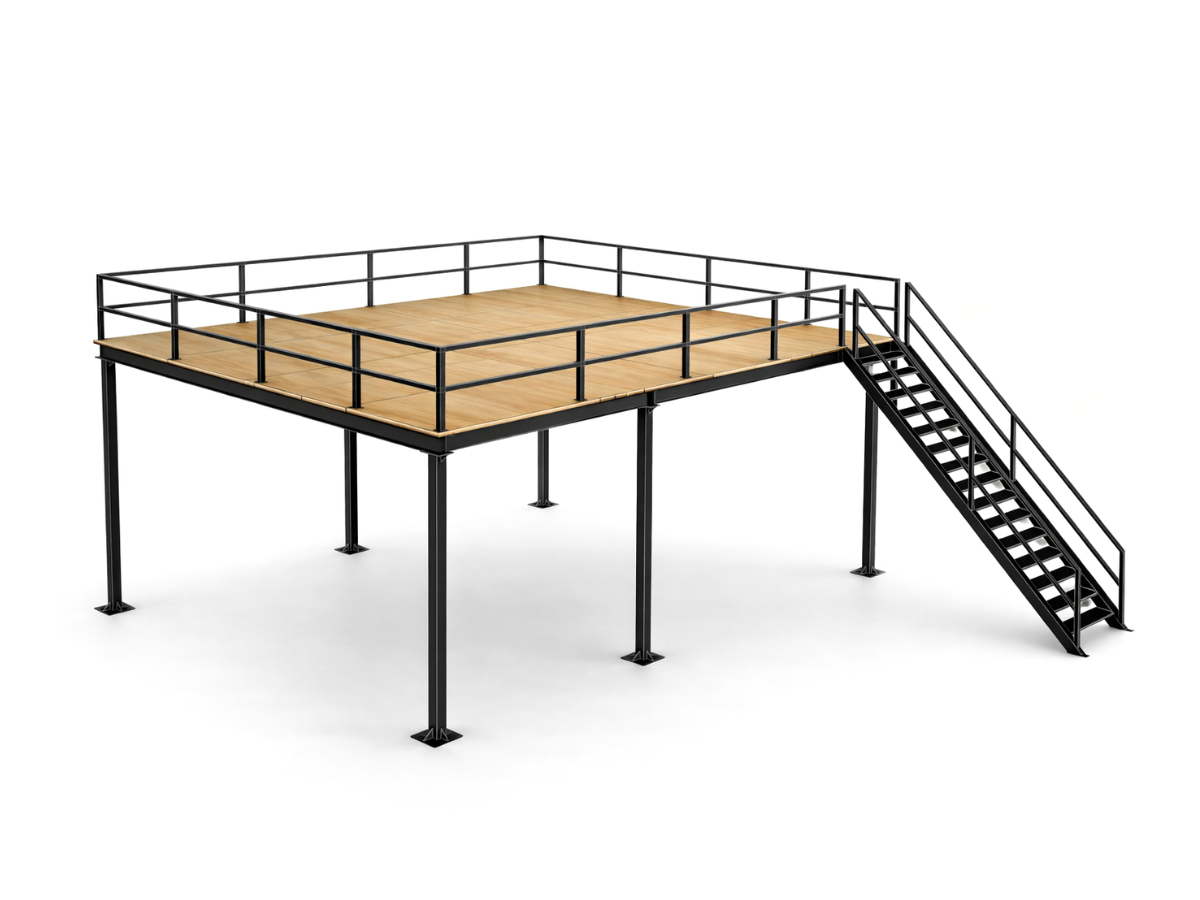

Structural Mezzanine Floors

Best for:
Large spaces, heavy loads, mixed-use environments

Why choose it:

  • maximum flexibility
  • high load capacity
  • fully custom layouts

Consideration:
Requires floor space for columns

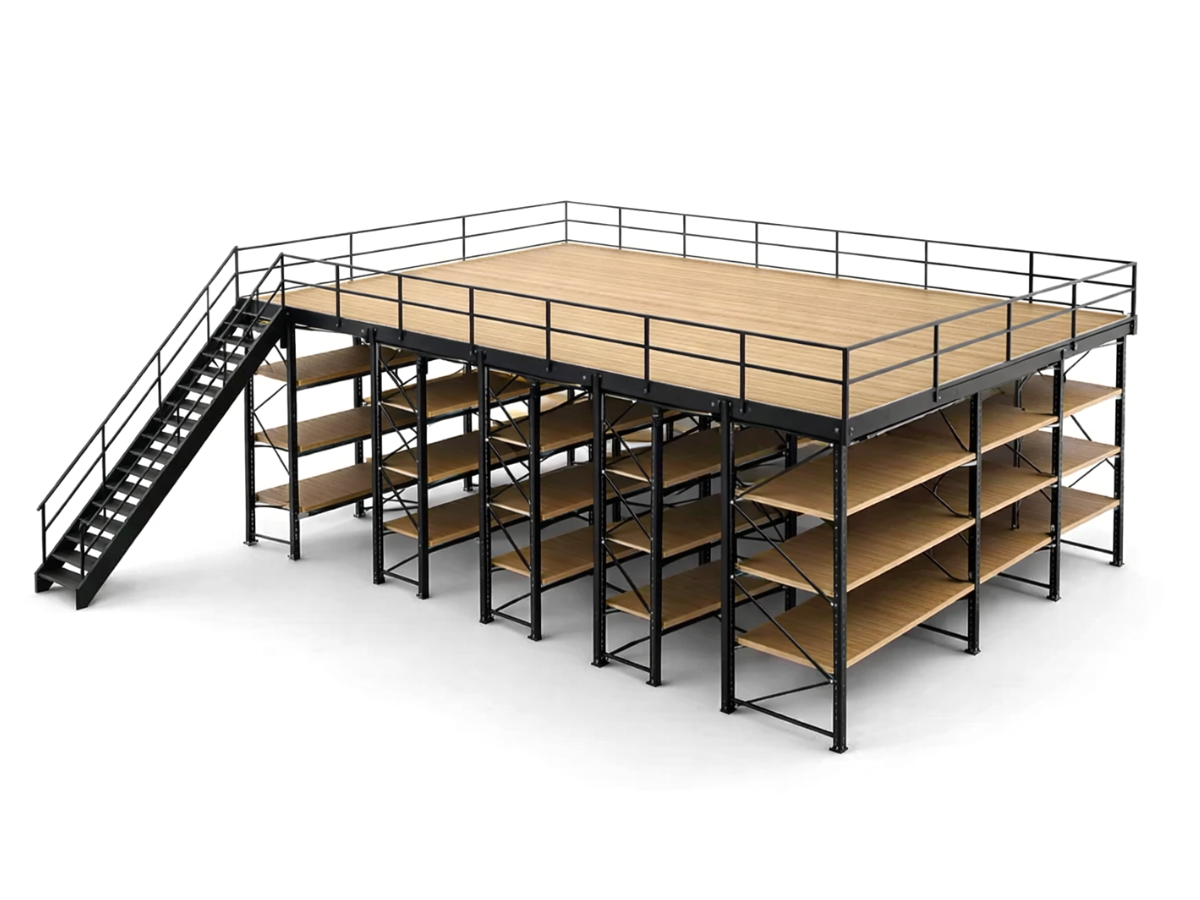

Rack-Supported Mezzanine Floors

Best for:
Warehouses needing high-density storage

Why choose it:

  • combines storage + floor in one system
  • maximises vertical space
  • cost-efficient for storage-heavy operations

Consideration:
Layout is influenced by racking design

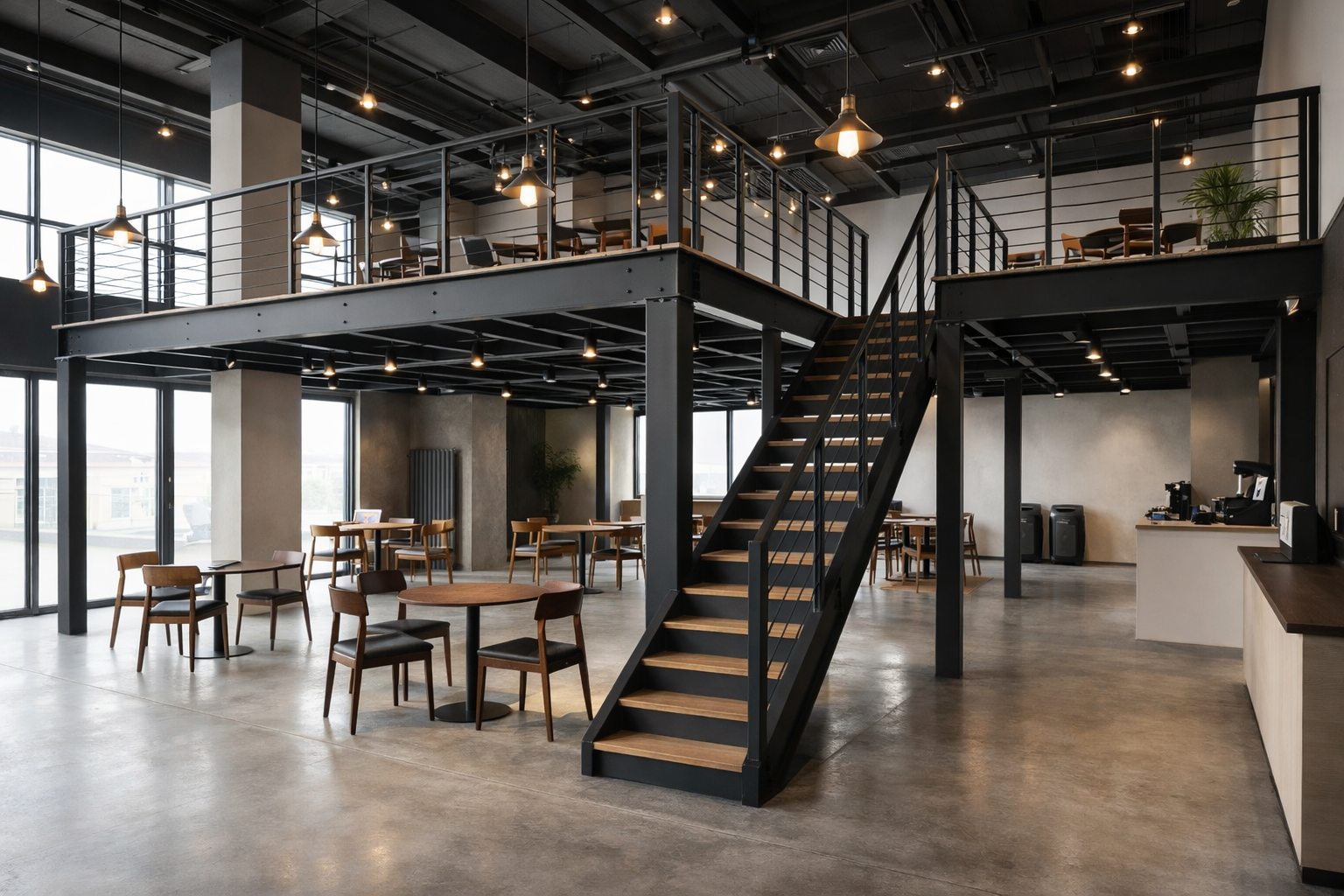

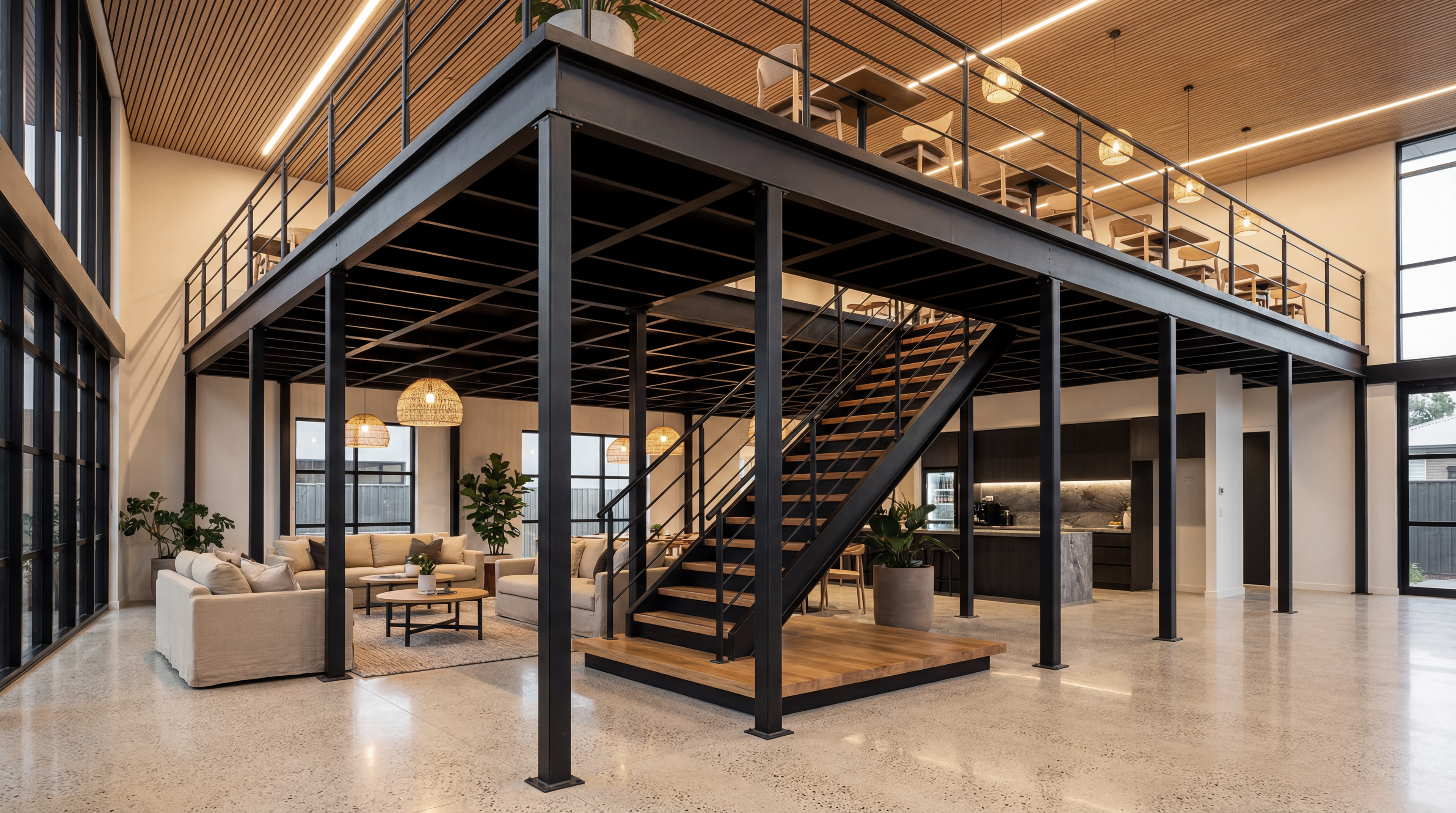

Interior Mezzanine Floors (Home & Office)

Best for:
Offices, retail, garages, residential spaces

Why choose it:

  • clean, modern finish
  • lighter structural requirements
  • integrates with interior design

Consideration:
Lower load capacity than industrial systems

FLOORING OPTIONS (CHOOSE BASED ON USE)

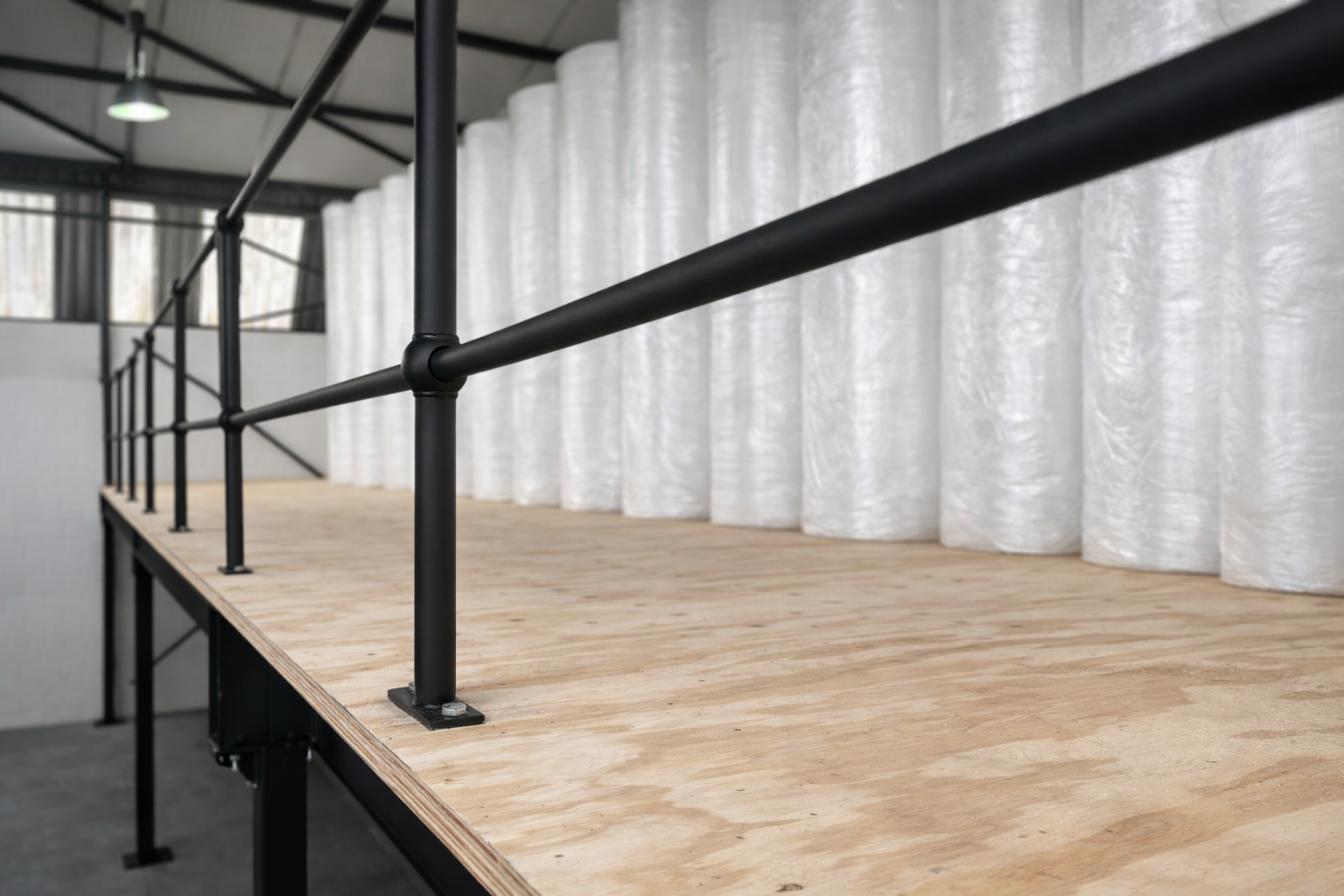

Timber / Plywood Decking

Most popular choice

  • cost-effective
  • durable and versatile
  • smooth surface for general use

Best for:
storage, offices, light industrial use

Cost level: Low–Medium

Steel Decking

Industrial-grade strength

  • high load capacity
  • impact resistant
  • long lifespan

Best for:
heavy-duty warehouse environments

Cost level: Medium–High

Mesh / Grating Flooring

Safety-focused solution

  • allows light and air through
  • supports fire sprinkler systems
  • reduces dust build-up

Best for:
regulated industrial environments

Cost level: Medium

Composite / Concrete Systems

Premium structural solution

  • maximum strength
  • long-term durability
  • minimal deflection

Best for:
large-scale commercial applications

Cost level: High

ACCESS & STAIR OPTIONS

Access is designed around how your team uses the space.

Steel Staircases

Durable, low maintenance, ideal for industrial use

Timber Staircases

Cleaner aesthetic for office or retail environments

Industrial Stairs

Built for high traffic and compliance

Ladders (Fixed or Removable)

Space-saving solution for smaller or low-access areas

SAFETY & COMPLIANCE

Every system is designed with safety built in — not added later.

We consider:

  • load capacity and structural integrity
  • guardrails and handrails
  • safe access points
  • fire safety requirements
  • correct anchoring and installation

We also provide load ratings and guidance to ensure your system is used correctly and safely.
